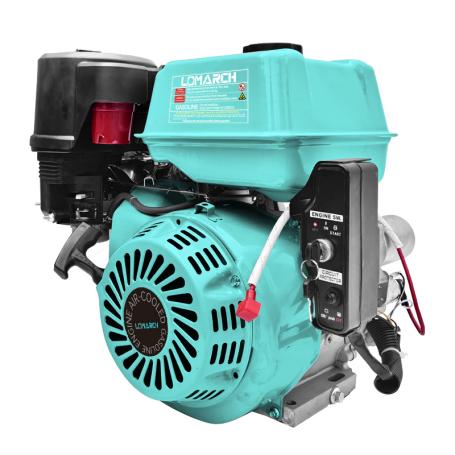

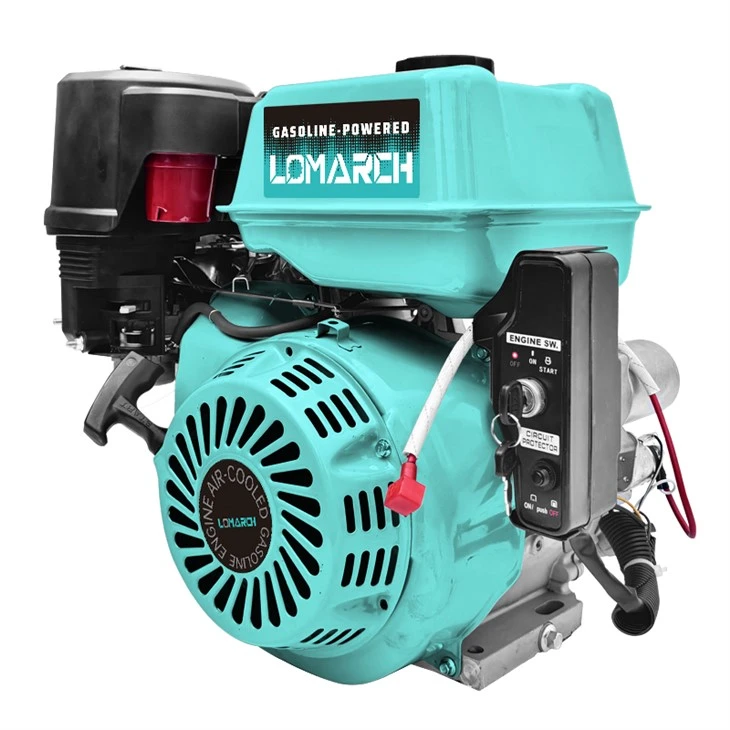

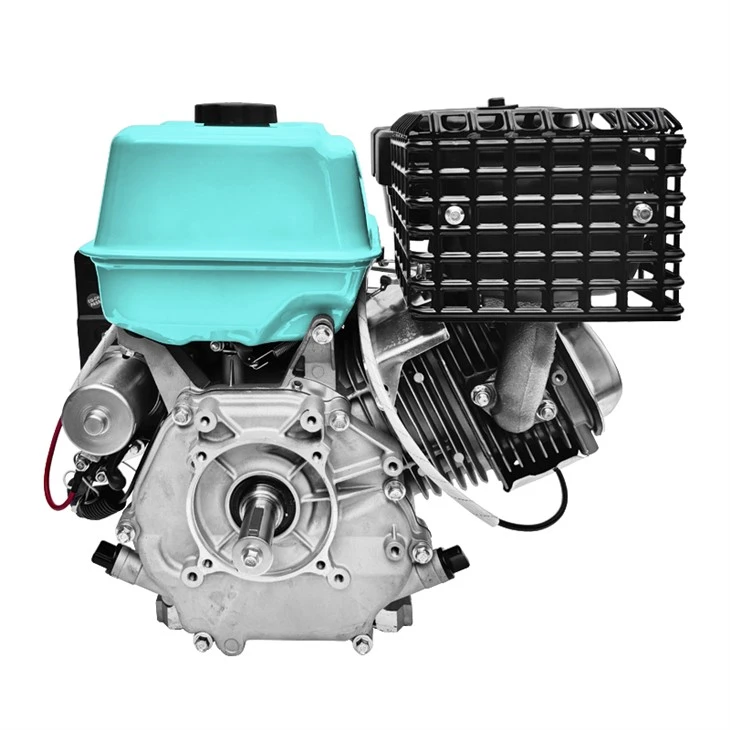

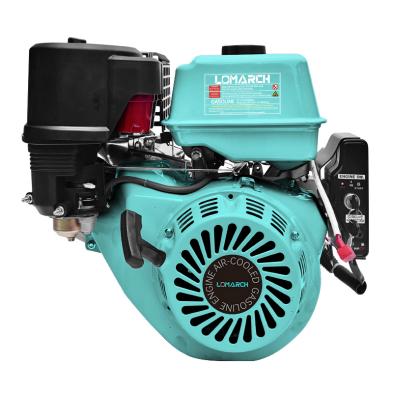

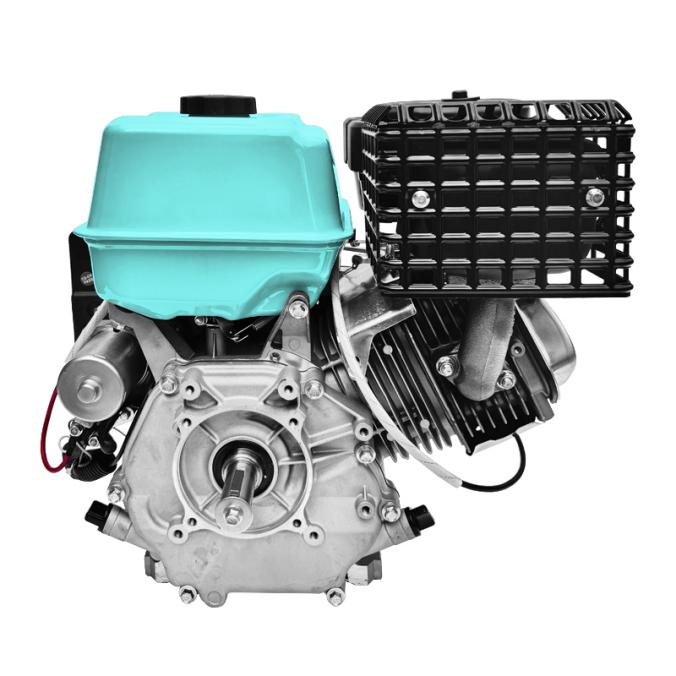

192F Gasoline Engine
The 192F gasoline engine is a single-cylinder, four-stroke gasoline engine commonly used to power various mechanical equipment.
Power Parameters: Typically, the 192F gasoline engine features a bore diameter of 92mm, a stroke ranging from approximately 66mm to 68.8mm, and a displacement Power Parameters: Typically, the 192F gasoline engine features a bore diameter of 92mm, a stroke ranging from approximately 66mm to 68.8mm, and a displacement between 450cc and 460cc. Power output generally reaches 18hp, with engine speed varying between 3000 rpm and 3600 rpm.
Structural Design: Primarily employs overhead valve (OHV) technology with an air-cooled configuration. The engine casing is typically cast from high-strength aluminum alloy, providing excellent heat dissipation while significantly reducing overall weight.
Fuel and Tank: Primarily gasoline-powered, fuel tanks typically hold 6.5L, though some models feature capacities up to 15L or even 20L. Engine oil capacity is generally 1.1L or 1.8L.
Ignition and Starting: Equipped with a non-contact transistorized ignition (TCI) system. Starting options commonly include recoil manual start and electric start.
Products parameter
| 192F Gasoline Engine | |||||||
| Model | BoreStroke(mm) | Displacement(cc) | Engine Speed(rpm) | Rated AC Output (kw) | Fuel Tank Capacity(L) | Engine Oil Capacity(L) | Fuel Consumption(g/kw.h) |
| 170F | 70*54 | 208 | 3600 | 4 | 3.6 | 0.6 | 395 |
| 177F | 77*58 | 270 | 3600 | 4.5 | 6.5 | 1 | 370 |
| 190F | 90*66 | 420 | 3600 | 8.2 | 6.5 | 1.1 | 370 |
| 192F | 92*66 | 440 | 3600 | 9 | 6.5 | 1.1 | 370 |
| 196F | 96*86 | 622 | 3600 | 13 | 6.5 | 1.6 | 390 |
| Our Entire Product Series Supports Customized Solutions. Parameters Can Be Optimized To Meet Your Specific Requirements | |||||||
Product Details
Electric Start System
Precisely matched, flawless starting performance
Air Filter Assembly
Dust control and engine protection, full power delivery
Starter Pulley
Effortless operation and durability, zero-effort starting
Custom Crankshaft
Robust and resilient, extended lifespan beyond expectations
Widely Applicable
192F Gasoline Engine: Dedicated Power Solution for 6-10kW Mid-Power Applications
Leveraging its 6-10kW rated power, lightweight design (approx. 35-42kg total weight), direct fueling with 92# unleaded gasoline, and low-noise characteristics, the 192F gasoline engine is ideally suited for non-diesel heavy-duty applications. It precisely meets the demands of medium-to-low load, high mobility, and low-noise requirements.
Why do We Choose Lomarch?
Starting resistance ≤12N, 30% lower than gasoline engines of equivalent power
Horizontal single-cylinder + 20mm standard shaft, direct mounting for micro tillers/welders, saving 80% installation time
Cold start capable of driving 1.5kW load within 10 seconds, no warm-up required
Side-mounted oil port + snap-on air filter for tool-free maintenance; oil changes and filter cleaning complete in 10 minutes
FAQ
Q: At what temperature does the water temperature exceed normal range during operation of the 192F gasoline engine?
A: Exceeding 95°C is considered abnormal (normal range: 65-85°C).
Q: Can the air filter in a 192F gasoline engine be replaced with ordinary sponge? Why?
A: No. The original air filter uses a composite filter paper + sponge structure that filters over 90% of dust particles. Ordinary sponge has only 50% filtration efficiency. Long-term use will allow dust to enter the cylinder block, accelerating piston wear and potentially clogging the carburetor.
